Teknisk info / venue specs

Sound

PA

• Main LR: 2 x d&b audiotechnik 12S-D Loudspeaker (flown)
• Centre: 1 x d&b audiotechnik 10S-D Loudspeaker (flown)
• Subs: 2 x d&b audiotechnik 27S cardioid Subwoofer
• d&b audiotechnik 40D Amplifier

Monitors

• 4 x EM Acoustics M-C12 passive coaxial passive monitor
• EM Acoustics DSC48 Digital system controller
• EM Acoustics AQ-10 4-channel power amplifier
• Additional: 2 x LD Systems MON 8 A G3 active monitor

Front of House

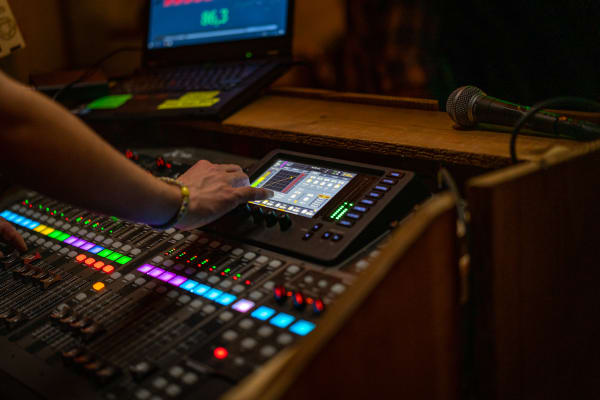

• Behringer X32 digital mixer
• Behringer S32 digital stagebox, 32 inputs, 16 outputs
• Power distribution 230V for additional sound equipment
• 10EaZy Sound level monitoring system
• Note: for artist’s own sound mixer and stage box, the minimum cable length required from FoH to stage rear centre is 25m

Microphones

• 6 x Shure Beta 58A
• 4 x Shure Beta 57A
• 1 x Shure Beta 91A
• 1 x Shure Beta 52A
• 2 x Neumann KM184
• 3 x Sennheiser E604
• 2 x Audio-Technica AE3000

Microphone Stands

• 10 x tall stands
• 7 x low stands

Line Drivers

• 11 x LD Systems LDI 02 – Active DI
• 2 x Radial Engineering JDI – Passive DI

Lighting

Stage DMX Lights

• 4 x LED Moving Head - ADJ MY712Z
• 5 x LED Colour Wash PAR - ADJ ProPar18-Hex
• 4 x LED White Wash PAR - ADJ ProPar18-Wh
• 4 x LED Colour Zoom PAR - Eurolite Z-Par

Audience DMX Lights

• 2 x LED Colour Bar – ADJ VBAR

Smoke Machine

• Stairville AFH-600 DMX Hazer

Lighting DMX Control

• Wolfmix W1

Venue

• Concert room dimensions: 8.7m wide, 12.5m deep, 6-8m high
• Maximum capacity: 130 standing / 85 seated guests

Stage

• Stage dimensions: 8.7m wide x 2.5m deep. Stage width is the full width of the venue.
• Stage raised height above audience level: 0.55m
• Power distribution 230V for artists use

Grand Piano

• Hindsberg H3, 188cm
• The piano is located on the stage, available for artist’s use
